Setting Up a Cash Drawer in the NX Portal
Cash drawers in the NX ecosystem are hardware devices used to manage and store cash transactions. Each drawer is connected to a printer, which acts as the trigger mechanism for opening the drawer. This article explains how to configure a cash drawer in the NX Portal.
Overview
-
Cash drawers connect to configured printers (USB, Ethernet, or Wi-Fi).
-
You can connect up to two drawers per printer.
-
Printer devices must be set up first under:
Configuration > Devices > Printing > Printer Devices.
1. Navigate to the Drawers Configuration
-
Log in to the NX Portal.
-
From the navigation menu, go to:
Devices > Drawers
-
You will see a list of existing drawers.
-
Click New Item to create a drawer, or use the pencil icon to edit an existing one.
2. Enter Drawer Details
-
Name:
Enter a clear and recognizable name for the drawer.
Examples: Barista Drawer, Cantina Drawer, Nexus Drawer.

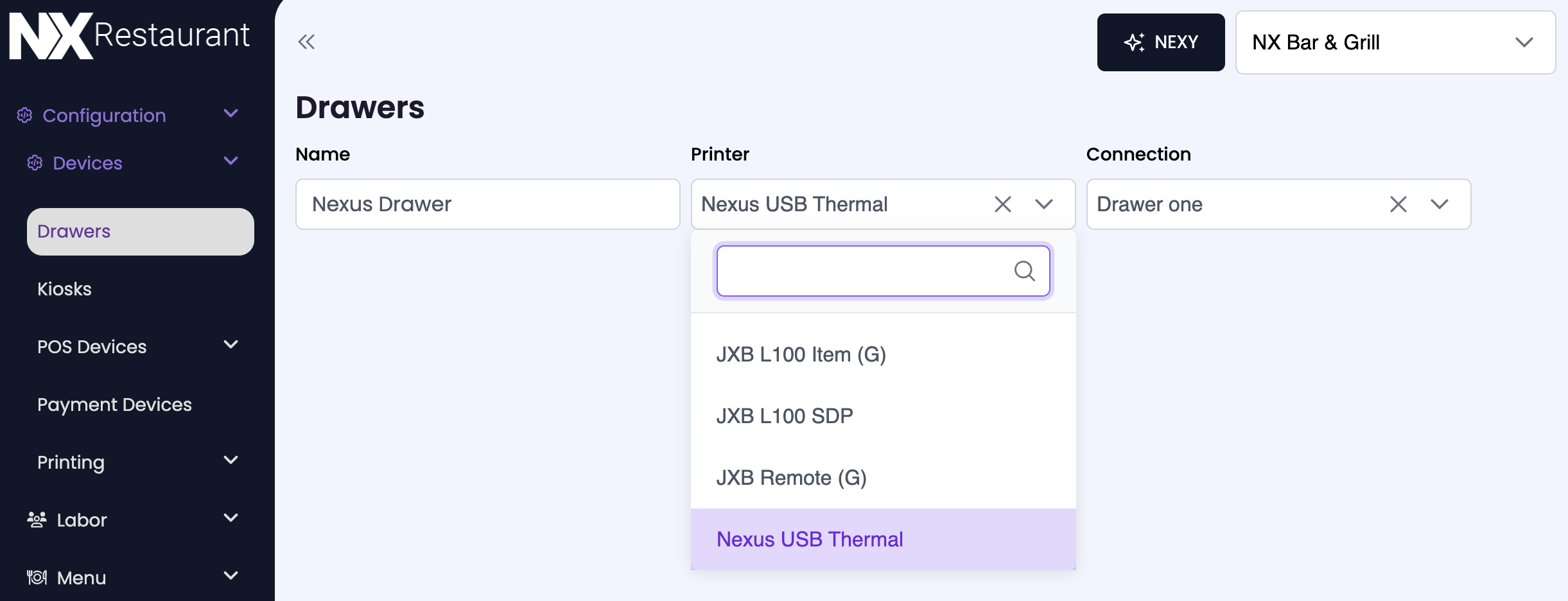

3. Select the Printer
-
From the Printer dropdown, choose a previously configured printer.
-
The printer must be set up under:
Configuration > Devices > Printing > Printer Devices
-
Supported printer types include:
-
USB
-
Ethernet
-
Wi-Fi
-
💡 Make sure the selected printer is physically connected to the drawer to enable open/close functionality.

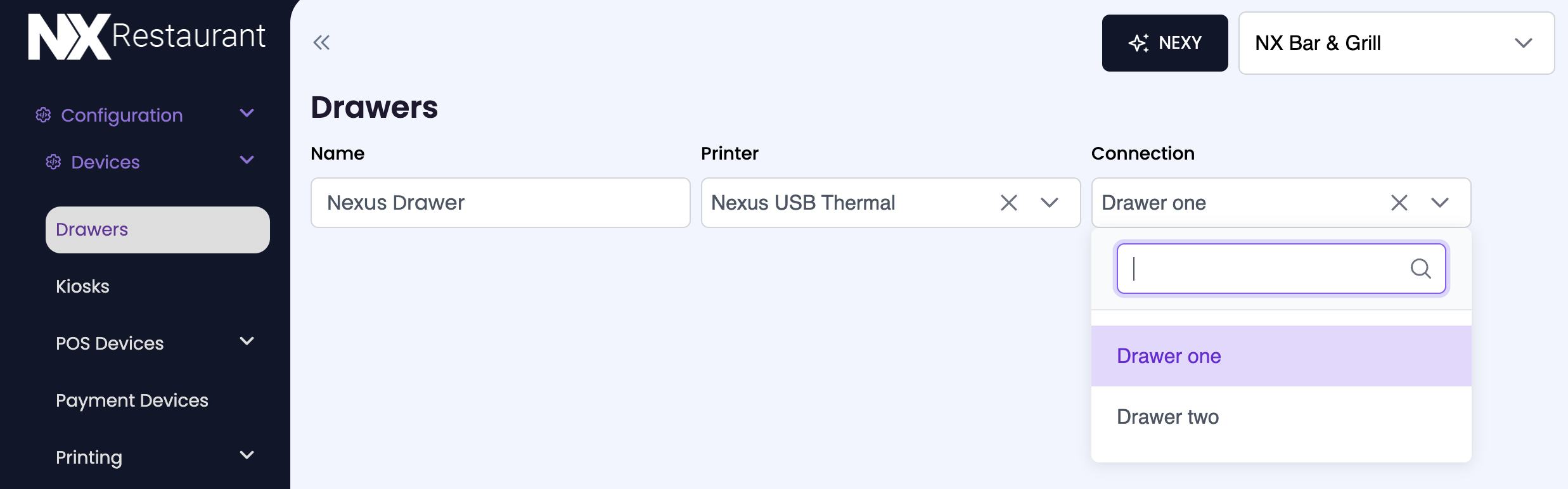

4. Assign the Drawer Connection
-
Choose the drawer port via the Connection dropdown:
-
Drawer one
-
Drawer two
-
-
This determines which port on the printer the drawer is connected to.
5. Save the Configuration
-
After entering all the necessary information:
-
Click Save to finalize your settings.
-
6. Final Steps
-
Verify all physical connections between printer and drawer.
- Ensure to link the drawer to any stations that will be able to access it.
-
Run a test transaction from the POS to ensure the drawer opens correctly.
-
Provide staff with any required operational or security instructions.
Need Help?
For further assistance with cash drawer configuration or troubleshooting, please contact your NX Support Partner.
