Setting Up a Virtual Screen Printer in NX

📺 Setting Up a Virtual Screen Printer in NX

NX now supports a Virtual Screen Printer — a printer type that outputs printed content directly to the POS device’s screen instead of a physical printer. This is incredibly helpful for testing, setups without printers, or environments where visual-only printing is desired.
This feature works for all print job types, including:

✔️ Guest receipts
✔️ Card vouchers
✔️ Remote chits

Let’s walk through how to configure it! 🚀

🧩 What Is a Virtual Screen Printer?

A Screen Printer is a special printer type inside NX.
Instead of sending print jobs to physical hardware, NX will “print” the output directly onto the device's screen — just like a standard print preview.

This is great for:

👉 Training scenarios
👉 Debugging print routing
👉 Devices without connected printers
👉 Mobile setups (handhelds/tablets)
👉 Operators who want to verify print behavior visually

🛠️ Step 1 — Create a Printer of Type Screen

1. Navigate to Configuration → Printing → Printers & KDS
2. Select New Printer
3. Set:
   • Name: anything you want (ex: Screen, Virtual Printer, etc.)
   • Type: Screen 🖥️
4. Save ✔️

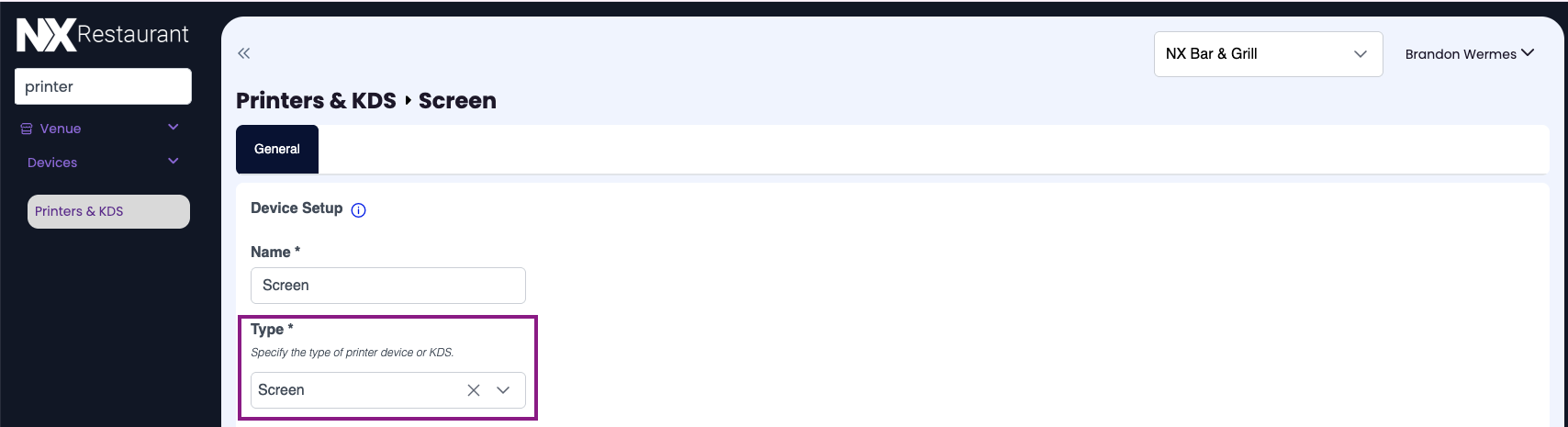

📸 Reference Screenshot:

You now have a virtual printer ready to use!

🖨️ Step 2 — Assign the Screen Printer to a POS Device (for Receipts)

If you want receipts printed to the current station’s screen:

1. Navigate to Devices → POS Devices
2. Select your POS station
3. Go to the Peripherals tab
4. Choose Receipt Printer → Screen
5. Save 💾

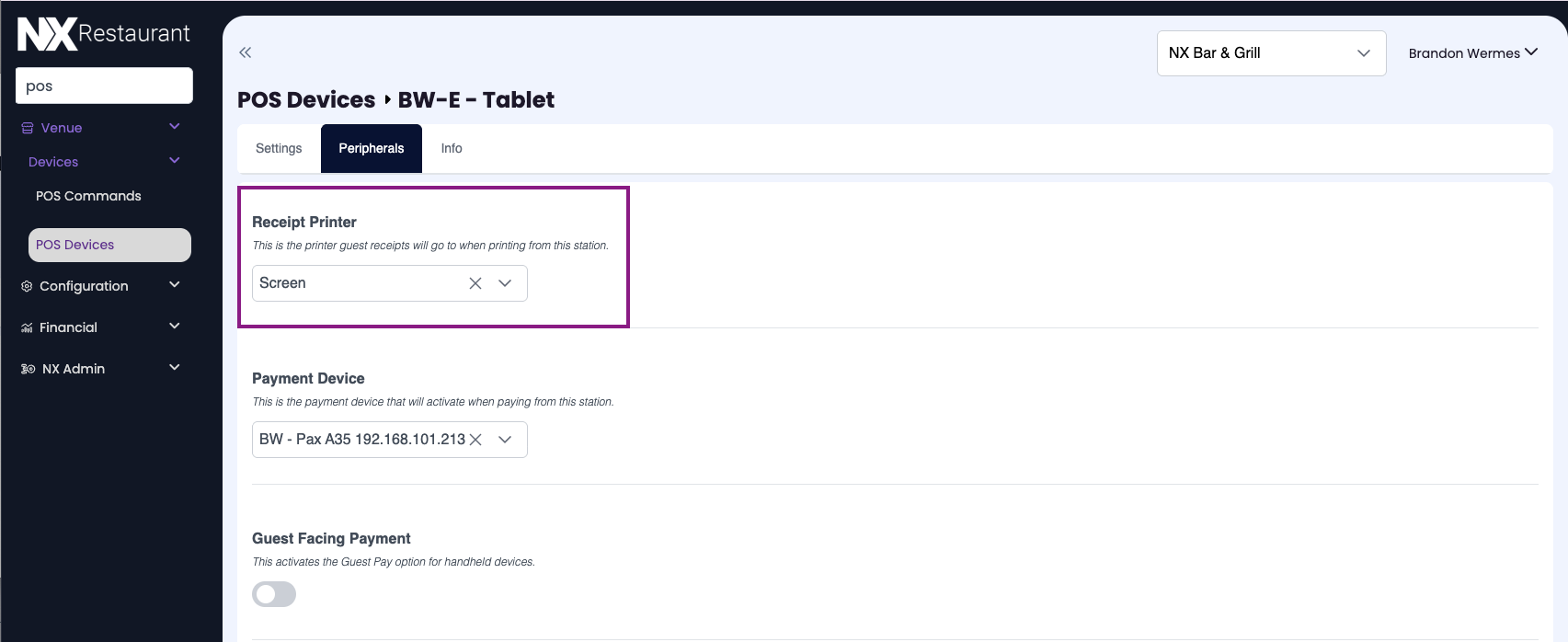

📸 Reference Screenshot:

Now all guest receipts from this device will display on-screen!

🧑‍🍳 Step 3 — Route Remote Chits to the Screen Printer

If you'd like kitchen chits or bar chits to also display on screen:

1. Visit Configuration → Printing → Routing → Destinations
2. Select the desired Destination (ex: Screen)
3. Under Destination Device, choose Screen
4. Save 🎉

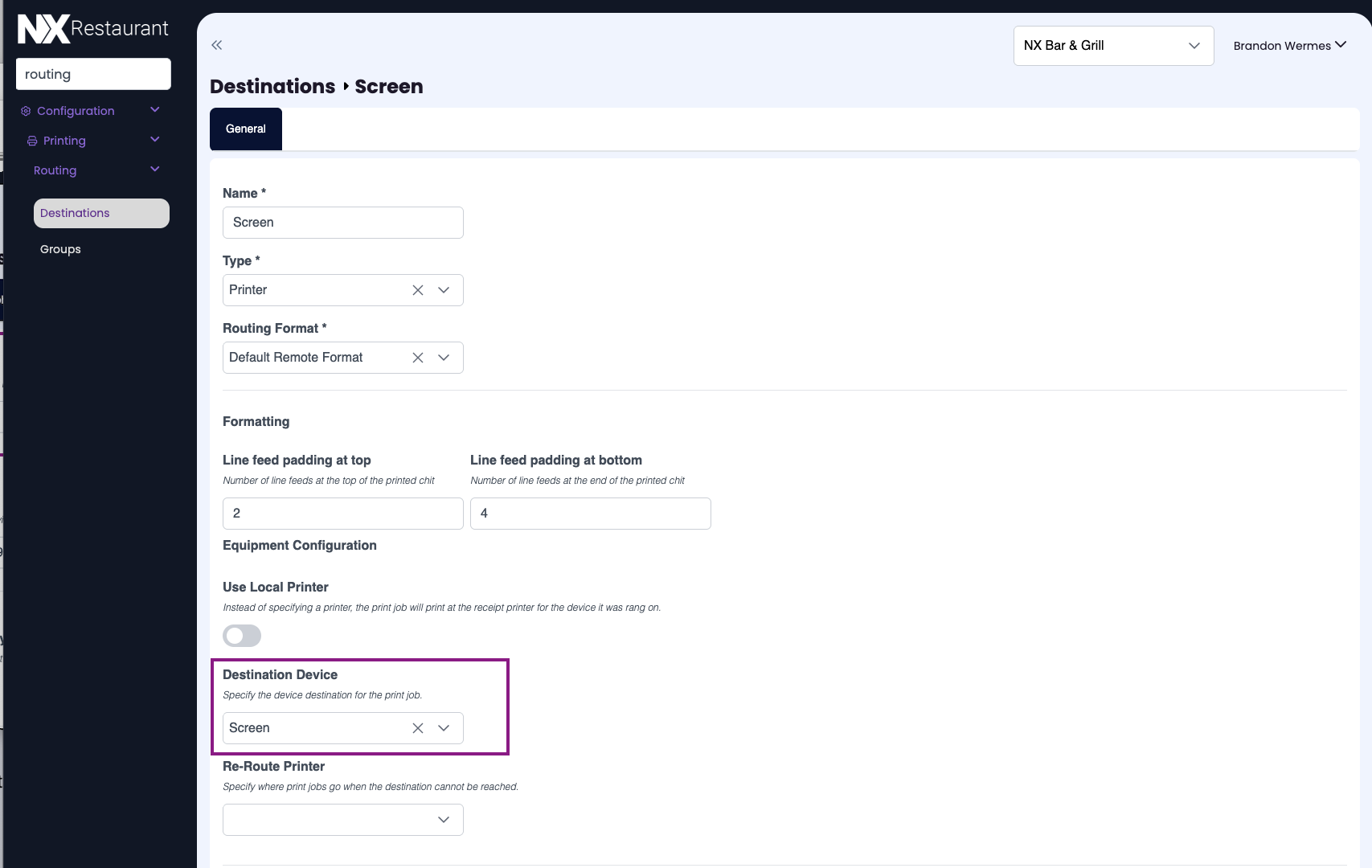

📸 Reference Screenshot:

This allows all items routed to that destination to print to the on-screen printer.

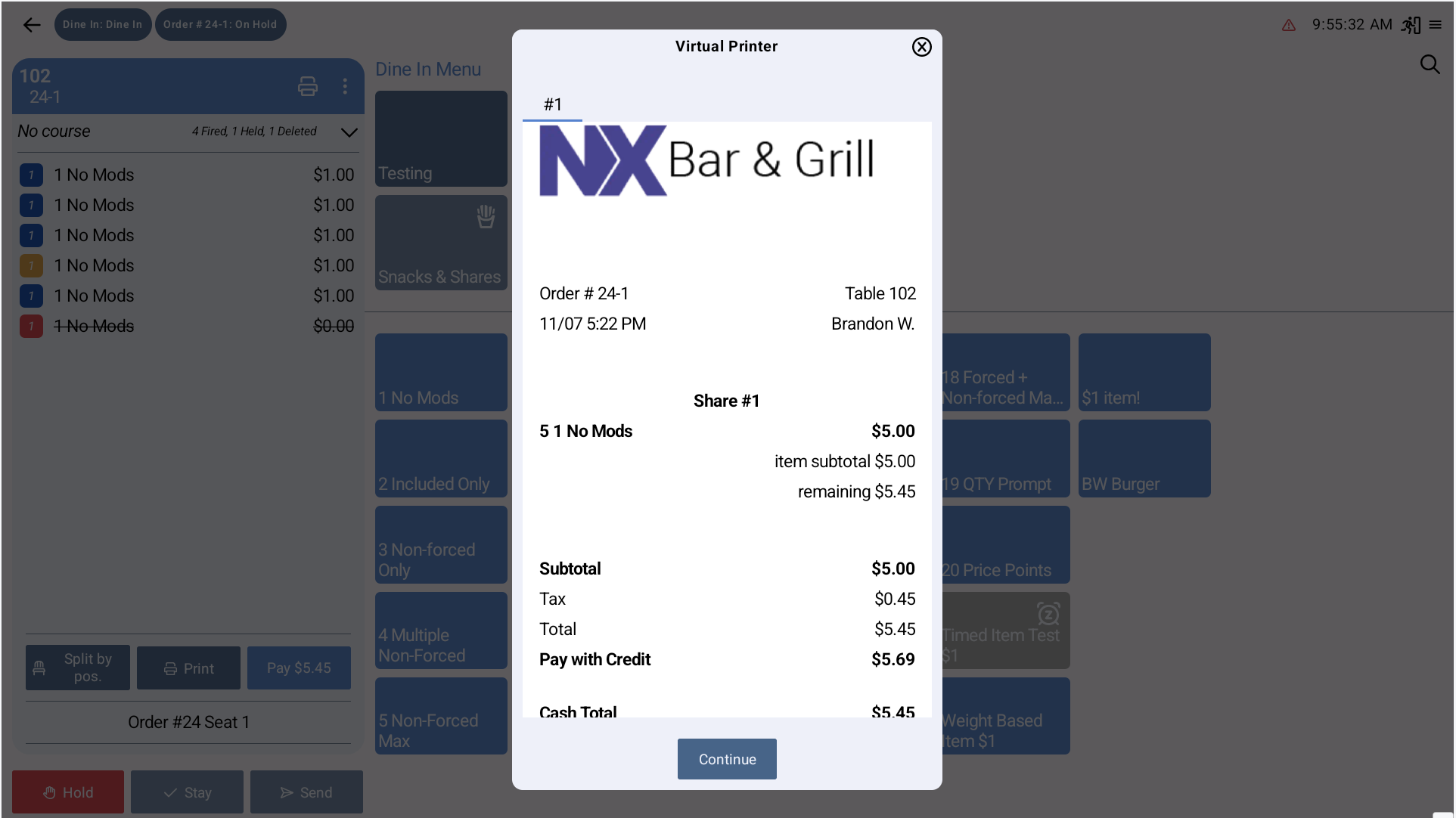

🔍 How the Screen Printer Appears in NX

When a print job fires:

✨ A popup appears on the POS device
✨ It contains the exact print output
✨ Just like a printed chit or receipt
✨ No hardware required

Perfect for testing and demonstrations!

🎯 Summary

The Virtual Screen Printer is easy to set up:

1. Create a Printer with Type = Screen
2. Assign it to POS devices for receipts
3. Route destinations to it for remote chits
4. Enjoy on-screen printing anywhere! 🎉

This feature provides flexibility, enhances testing workflows, and supports environments where traditional printers are not available.
