System Status Notifications in NX Restaurant (POS & KDS)
In NX Restaurant, both the POS and KDS devices can display a System Status Alert to notify users of possible connectivity or device issues.
System Alert Icon
- Icon: A red triangle with an exclamation point.
- Location: Top-right corner of the screen.
- Where it Appears: POS login screen POS ordering screens KDS screens
When this icon appears, it indicates a possible issue with one or more of the following:
- Cloud connection
- Credit processing
- Printer or KDS device connection

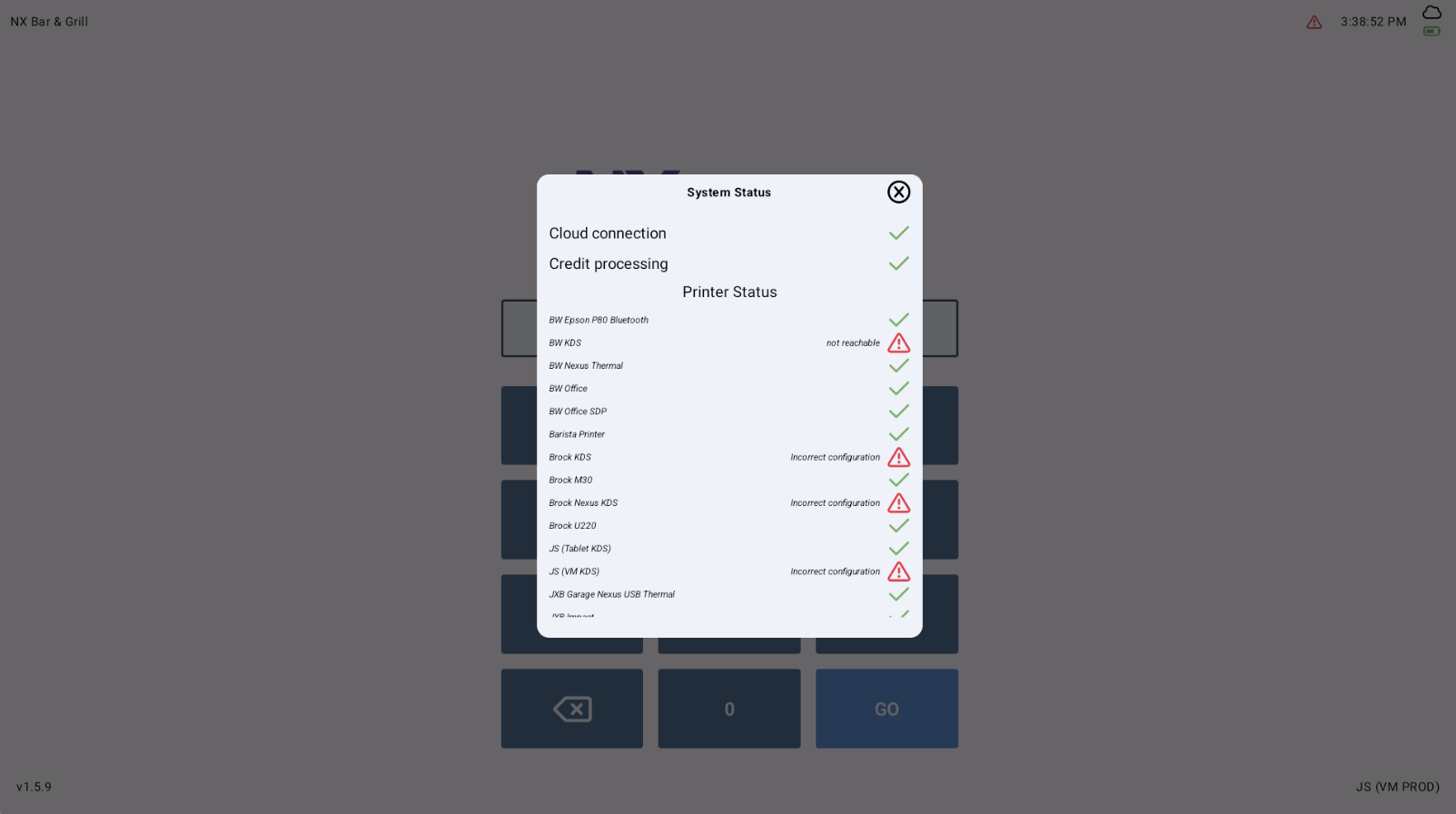

Viewing System Status
- Tap the red System Alert icon in the top-right corner.
- The System Status window will display:
- Cloud connection status
- Credit processing status
- Printer and KDS device status
Understanding Printer/KDS Status Indicators
Each device will have a status icon:
- ✅ Green checkmark – Device is connected and functioning.
- ⚠️ Red warning icon – Device is not reachable or has an incorrect configuration.
Possible device error messages:
- Not reachable – The POS/KDS cannot communicate with the device.
- Incorrect configuration – The device settings in the system are incorrect.
Testing a Printer or KDS Connection
Sending a printer or KDS device a test print job:
- Tap the device name in the System Status list.
- The system will send a test order to the device to confirm connectivity.
Tip: If a device remains in error after a test order, verify the device’s network connection and configuration settings in the NX Restaurant portal.
If you encounter any issues or have further questions, please contact your NX Support Partner for assistance.
